Jason Diddle Posted October 16, 2022 Report Share Posted October 16, 2022 Hello, I just started using my Do-it hybrid grass jig mold. I’m having trouble with the 3/8 oz pouring completely. The other weights pour fine. Also it is a pain to keep the hook aligned to close the mold. I think I will add or modify my mold before next pour. Any suggestions??? Quote Link to comment Share on other sites More sharing options...
cadman Posted October 16, 2022 Report Share Posted October 16, 2022 Do You use (Franford Arsenal) Drop-Out? If not start there first and 90% of your problems should disappear. 2 Quote Link to comment Share on other sites More sharing options...
Jason Diddle Posted October 16, 2022 Author Report Share Posted October 16, 2022 Thanks for the reply. No, I haven’t tried that yet. I seen a couple tricks on YouTube. But just having some trouble getting a complete mold of the 3/8 mainly at the bait keeper area. I’ll have to try that. Quote Link to comment Share on other sites More sharing options...
rustedhook Posted October 16, 2022 Report Share Posted October 16, 2022 16 hours ago, Jason Diddle said: Hello, I just started using my Do-it hybrid grass jig mold. I’m having trouble with the 3/8 oz pouring completely. The other weights pour fine. Also it is a pain to keep the hook aligned to close the mold. I think I will add or modify my mold before next pour. Any suggestions??? I spray my molds with liquid graphite. Prior to pouring I dust the cavities with talcum powder and blow off excess. After several pours I re-dust. Also make sure you mold and hook are hot. 1 Quote Link to comment Share on other sites More sharing options...
Dink Master Posted October 17, 2022 Report Share Posted October 17, 2022 Your right, it is a pain to keep the hook aligned. I used some RotoMetals Casting Retainer Putty at the edge of the mold. (see photo) Quote Link to comment Share on other sites More sharing options...
Dink Master Posted October 17, 2022 Report Share Posted October 17, 2022 Just noticed the hook eye was not in place. Here is a new photo. Also heat the hook while it is in the mold with a torch before closing the mold. (Hook shaft Bait keeper area) https://www.amazon.com/RotoMetals-Casting-Retainer-Damming-Positioning/dp/B00EQ83H5W Quote Link to comment Share on other sites More sharing options...
Jason Diddle Posted October 17, 2022 Author Report Share Posted October 17, 2022 LOL! I just modified mine this weekend kind of similar to those pictures. I’ll see if I can post a picture of mine. It takes care of hook rolling out of place. Thanks again for the replies. I ordered some spray to try. Quote Link to comment Share on other sites More sharing options...
smalljaw Posted October 17, 2022 Report Share Posted October 17, 2022 Until you get the graphite spray there are some things you can do. The first is temperature, that mold needs to be pretty hot so make sure you heat it up. The next thing is the lead itself needs to be really hot. If you are using a LEE pot look at the number you are melting he lead on. If you are using 6 then bump it up to 7, if you are on 7 then bump it up to 8. Once the lead and mold are good and hot then pour 5 or 6 blanks without a hook, this will get that cavity nice and hot. After you pour your blanks place the hook in and close the mold. Put the pour spout right in the gate and then pour. This is what I do and the last time I used the mold I poured 30 3/8oz heads. Out of that 30 I only had 2 incomplete pours. As the other guys have said before, the Drop out spray will help a lot. You could try smoking the mold as well but the spray has always worked better for me. Quote Link to comment Share on other sites More sharing options...

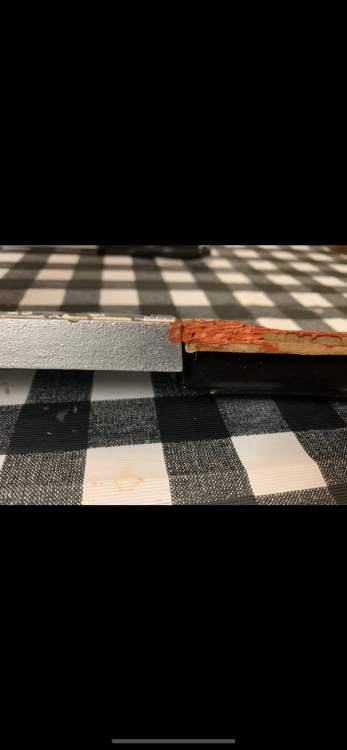

Jason Diddle Posted October 17, 2022 Author Report Share Posted October 17, 2022 This is what I did after my first pour. It doesn’t look pretty but supports the hook and keeps it straight and in place if you use a 4/0. It’s Wood, high heat silicone, and a sunk in magnet. Quote Link to comment Share on other sites More sharing options...
Jason Diddle Posted October 17, 2022 Author Report Share Posted October 17, 2022 It should help make things go a little quicker. I felt like I was fumbling with the hook too much trying to keep it in place and it was letting the mold cool down. Quote Link to comment Share on other sites More sharing options...
